ARC
|
|
|
|
Welding Electrodes
|
|
|
|
S6013.LF
|
|
|
|
AWS A5.1 / ASME SFA5.1 E6013
|
|
|
|
JIS Z3211 D4313
|
|
|
|
Applications
|
|
|
S-6013.LF can be used for welding machinery, vehicles, light structural steels and surface dressing of heavy steels structures.
|
|
|
Usage Specifications
|
|
|
S-6013.LF is a low fume, high titania type of electrode. Fume generation is 20% less than that of a conventional high titania electrode.It is a general purpose electrode with a stable arc, shallow penetration and a smooth welding bead.
|
|
|

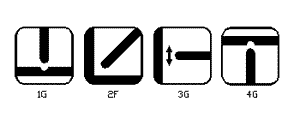

Welding Position Welding Current Usage Notes
|
 |
|
|
Dry the electrodes at 70 ~ 100'C for 30 ~ 60 minutes before use.
|
|
|
AC or DC +/-
|
|
|
|
|
|
|
Do not exceed the recommended current for the electrode size.
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
|
0.05
|
0.23
|
0.35
|
0.022
|
0.017
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
Y.S N/mm sq
|
T.S N/mm sq
|
E.L ( % )
|
Temp 'C
|
Impact Test-J cvn
|
|
439
|
488
|
26.8
|
0
|
67
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S6013LF26
|
45 ~ 95
|
5 Kg
|
20 Kg
|
|
S6013LF32
|
60 ~ 130
|
5 Kg
|
20 Kg
|
|
S6013LF40
|
100 ~ 180
|
5 Kg
|
20 Kg
|
|
|
|
S6013.V
|
|
|
|
AWS A5.1 / ASME SFA5.1 E6013
|
|
|
|
JIS Z3211 D4313
|
|
|
|
Applications
|
|
|
S-6013.V can be used for welding of sheet steel structures in ships, railway vehicles, cars, surface dressing of heavy steel structures.
|
|
|
Usage Specifications
|
|
|
S-6013.V is a high titania electrode with remarkably improved workability. It is suitable for welding thin pipe . And is excellent for vertical down welding.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
Dry the electrodes at 70 ~ 100'C for 30 ~ 60 minutes before use.
|
|
 |
|
|
|
|
|
Do not exceed the recommended current for the electrode size.
|
|
|
AC or DC +/-
|
|
|
|
|
|
|
|
In case of vertical down welding, manipulate the electrode, keeping its tip in contact with the base metal.
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
|
0.06
|
0.31
|
0.53
|
0.026
|
0.015
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
Y.S N/mm sq
|
T.S N/mm sq
|
E.L ( % )
|
Temp 'C
|
Impact Test-J cvn
|
|
451
|
497
|
28.2
|
0
|
86
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S6013V26
|
60 ~ 100
|
5 Kg
|
20 Kg
|
|
S6013V32
|
100 ~ 140
|
5 Kg
|
20 Kg
|
|
S6013V40
|
140 ~ 190
|
5 Kg
|
20 Kg
|
|
|
|
S7016.H
|
|
|
|
AWS A5.1 / ASME SFA5.1 E7016
|
|
|
|
JIS Z3212 D5016
|
|
|
|
Applications
|
|
|
S-7016.H can be used for welding high tensile steel such as bridges, buildings, shipbuilding, high pressure vessels and rolling stock.
|
|
|
Usage Specifications
|
|
|
S-7016H has excellent crack resistance and x-ray performance. A soft and stable ARC, with a smooth appearance, good fluidity and slag removable, with no undercut formation.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
|
Screen work area against strong winds.
|
|
|
|
Dry the electrodes at 300 ~ 350'C for 30 ~ 60 minutes before use.
|
|
|
AC or DC +
|
|
|
|
|
|
|
Adopt back step method when starting the ARC to prevent blow through.
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
|
0.07
|
0.32
|
1.13
|
0.017
|
0.011
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
Y.S N/mm sq
|
T.S N/mm sq
|
E.L ( % )
|
Temp 'C
|
Impact Test-J cvn
|
|
490
|
580
|
30.3
|
-29
|
80
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S7016H26
|
50 ~ 80
|
5 Kg
|
20 Kg
|
|
S7016H32
|
80 ~ 120
|
5 Kg
|
20 Kg
|
|
S7016H40
|
110 ~ 170
|
5 Kg
|
20 Kg
|
|
|
|
S7016.LF
|
|
|
|
AWS A5.1 / ASME SFA5.1 E7016
|
|
|
|
JIS Z3212 D5016
|
|
|
|
Applications
|
|
|
S-7016.LF can be used for welding high tensile steel. Such as bridges, ships and pressure vessels.
|
|
|
Usage Specifications
|
|
|
S-7016.LF is a low hydrogen type of electrode. Fume generation is 20 ~ 30% lower than a conventional electrode. X-ray and mechanical properties are good , as is its resistance to cracking due to the low hydrogen content.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
|
Keep the ARC as short as possible.
|
|
|
|
Dry the electrodes at 300 ~ 350'C for 30 ~ 60 minutes before use.
|
|
|
AC or DC +
|
|
|
|
|
|
|
Adopt back step method when starting the ARC to prevent blow through.
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
|
0.07
|
0.35
|
1.10
|
0.016
|
0.011
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
Y.S N/mm sq
|
T.S N/mm sq
|
E.L ( % )
|
Temp 'C
|
Impact Test-J cvn
|
|
485
|
583
|
31.0
|
-29
|
75
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S7016LF26
|
50 ~ 80
|
5 Kg
|
20 Kg
|
|
S7016LF32
|
80 ~ 130
|
5 Kg
|
20 Kg
|
|
S7016LF40
|
110 ~ 170
|
5 Kg
|
20 Kg
|
|
|
|
S7018.G
|
|
|
|
AWS A5.1 / ASME SFA5.1 E7018
|
|
|
|
JIS Z3212 D5016
|
|
|
|
Applications
|
|
|
S-7018.G can be used for highly efficient welding of 7,300 lbs/in2 class high tensile steel, such as bridges, buildings, rolling stock and machines.
|
|
|
Usage Specifications
|
|
|
S-7018.G is an iron powder low hydrogen type of electrode of high efficiency for welding high tensile steel.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
|
Keep the ARC as short as possible.
|
|
|
|
Dry the electrodes at 350 ~ 400'C for 30 ~ 60 minutes before use.
|
|
|
AC or DC +
|
|
|
|
|
|
|
Adopt back step method when starting the ARC to prevent blow through.
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
|
0.06
|
0.50
|
1.20
|
0.017
|
0.011
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
Y.S N/mm sq
|
T.S N/mm sq
|
E.L ( % )
|
Temp 'C
|
Impact Test-J cvn
|
|
504
|
572
|
29.8
|
-29
|
111
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S7018G26
|
50 ~ 80
|
5 Kg
|
20 Kg
|
|
S7018G32
|
80 ~ 120
|
5 Kg
|
20 Kg
|
|
S7018G40
|
120 ~ 170
|
5 Kg
|
20 Kg
|
|
|
|
S7024.F
|
|
|
|
AWS A5.1 / ASME SFA5.1 E7024
|
|
|
|
JIS Z3211 D4324
|
|
|
|
Applications
|
|
|
S-7024.F can be used for welding of flat and horizontal fillet welding of internal structures, inside hulls, buildings and machine construction.
|
|
|
Usage Specifications
|
|
|
S-7024.F is a representative powder titania type of electrode, which is widely used for flat and horizontal fillet welding.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
 |
|
|
|
Keep the ARC as short as possible.
|
|
|
|
|
|
AC or DC +/-
|
|
|
|
|
Dry the electrodes at 70 ~ 100'C for 30 ~ 60 minutes if the electrodes are moist.
|
|
|
|
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
|
0.08
|
0.42
|
0.82
|
0.022
|
0.014
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
Y.S N/mm sq
|
T.S N/mm sq
|
E.L ( % )
|
Temp 'C
|
Impact Test-J cvn
|
|
495
|
569
|
27.8
|
0
|
48
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S7024F32
|
100 ~ 150
|
5 Kg
|
20 Kg
|
|
S7024F40
|
140 ~ 200
|
5 Kg
|
20 Kg
|
|
|
|
S600B.B
|
|
|
|
JIS Z3251 DF2B-600-B
|
|
|
|
Applications
|
|
|
Suitable for inter metallic heavy abrasion and soil abrasion. Hard facing of lower rollers and bucket edges.
|
|
|
Usage Specifications
|
|
|
S600B.B is an electrode depositing all weld metal of typical martensite structure. It is suitable for soil abrasion. the weld softens with heat.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
Preheat work at 150'C or above.
|
|
 |
|
|
|
|
|
Dry the electrodes at 350 ~ 400'C for 60 minutes before use.
|
|
|
|
|
AC or DC +
|
|
|
|
|
When multi-layer build up or base metal welding of hardening property, under lay with low hydrogen type carbon steel electrodes.
|
|
|
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
|
0.52
|
1.10
|
1.61
|
0.022
|
0.009
|
3.90
|
1.34
|
|
|
Typical Mechanical Composition Of All-Weld Metal (%)
|
|
Preheat Temp
|
Post Heat
|
Heat Treatment
|
Hardness (HB)
|
|
150’C
|
-
|
-
|
610
|
|
300’C
|
-
|
-
|
580
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S600BB32
|
90 ~ 140
|
5 Kg
|
20 Kg
|
|
S600BB40
|
140 ~ 190
|
5 Kg
|
20 Kg
|
|
|
|
S700B.B
|
|
|
|
JIS Z3251 DF3C-600-B
|
|
|
|
Applications
|
|
|
Hard facing of cutting knives and castings. Suitable for soil abrasion applications.
|
|
|
Usage Specifications
|
|
|
S700B.B is an electrode depositing weld metal of martensite which is harder than that of S600BB. Machining of the weld metal is impossible. Most suitable for soil abrasion applications.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
Preheat work at 150'C or above.
|
|
|
|
|
|
|
Post heat work at 600'C if possible.
|
|
|
|
|
AC or DC +
|
|
|
|
|
Dry the electrodes at 350 ~ 400'C for 60 minutes before use.
|
|
|
|
|
|
When multi-layer build up or base metal welding of hardening property, under lay with low hydrogen type carbon steel electrodes.
|
|
|
|
Typical Chemical Composition Of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
|
0.56
|
1.26
|
1.67
|
0.029
|
0.011
|
4.06
|
1.84
|
|
|
|
Typical Mechanical Composition Of All-Weld Metal (%)
|
|
Preheat Temp
|
Post Heat
|
Heat Treatment
|
Hardness (HB)
|
|
150’C
|
-
|
-
|
540
|
|
300’C
|
-
|
-
|
500
|
|
600’C
|
-
|
-
|
450
|
|
|
Available Size, Code & Recommended Currents (Amps)
|
|
Code
|
Current Range
|
Pack Size
|
Carton Size
|
|
S700BB32
|
90 ~ 140
|
5 Kg
|
20 Kg
|
|
S700BB40
|
140 ~ 190
|
5 Kg
|
20 Kg
|
|
|
|
|
|
|
|
