Stainless Steel Electrodes
|
|
|
|
S309L
|
|
|
|
AWS A5.4 / ASME SFA5.4 ER309L-16
|
|
|
|
JIS Z3221 D309L-16
|
|
|
|
Applications
|
|
|
|
Welding of 22% Cr-12% Ni steel. Welding of dissimilar metals and building-up welding of stainless steel on carbon steel or low alloy steel.
|
|
|
|
Usage Specifications
|
|
|
|
S309L-16 is a lime-titania type electrode with excellent usability. The all-weld metal contains extra low carbon and high quality of delta ferrite. It’s heat and corrosion resistibility are also good.
|
|
|
|

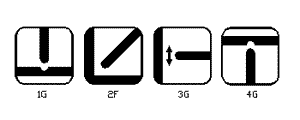

Welding Position Welding Current Usage Notes
|
|
|
 |
|
|
Dry the electrodes at 350'C for 60 minutes before use.
|
|
|
Keep the ARC length as short as possible.
|
|
|
AC or DC +
|
|
|
|
|
In case of clad steel welding, pay attention to the degree of penetration into the base metal.
|
|
|
|
|
|
|
Typical Mechanical Composition of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Ni
|
|
0.02
|
0.76
|
1.30
|
0.023
|
0.019
|
22.9
|
12.7
|
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
T.S N/mmSq
|
EL.(%)
|
|
563
|
43.0
|
|
|
|
|
Available Sizes & Recommended Currents ( Amps )
|
|
Code
|
Current
|
Pack Size
|
Carton Size
|
|
S309L26
|
45 ~ 85
|
2.5 Kg
|
10 Kg
|
|
S306L32
|
65 ~ 110
|
2.5 Kg
|
10 Kg
|
|
|
|
|
S312.16
|
|
|
|
AWS A5.4 / ASME SFA5.4 ER312-16
|
|
|
|
JIS Z3221 D312-16
|
|
|
|
Applications
|
|
|
|
Welding of 29% Cr-9% Ni steel. Bond welding of dissimilar metals such as stainless steel, carbon steel and low alloy steel. where high strength is needed..
|
|
|
|
Usage Specifications
|
|
|
S312-16 is a lime-titania type of electrode which has excellent usability and weld ability. Owing to the austenite structure containing large amounts of ferrite. S312-16 has good crack resistibility and can offer a excellent buffer against outer stress.
|
|
|
Welding Position Welding Current Usage Notes
|
|
|
|
|
|
|
|
Dry the electrodes at 350'C for 60 minutes before use.
|
|
|
|
Keep the ARC length as short as possible.
|
|
|
|
AC or DC +
|
|
|
|
|
|
Keep the current as low as possible.
|
|
|
|
|
|
|
Preheat the base metal to over 200'C to prevent cracking when welding high alloy steel such as tool steel.
|
|
|
|
|
|
Typical Mechanical Composition of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Ni
|
|
0.11
|
0.49
|
1.41
|
0.021
|
0.013
|
29.5
|
9.5
|
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
T.S N/mmSq
|
EL.(%)
|
|
803
|
22.0
|
|
|
|
|
Available Sizes & Recommended Currents ( Amps )
|
|
Code
|
Current
|
Pack Size
|
Carton Size
|
|
S312L26
|
45 ~ 85
|
2.5 Kg
|
10 Kg
|
|
S312L32
|
65 ~ 115
|
2.5 Kg
|
10 Kg
|
|
|
|
|
S316L.16N
|
|
|
|
AWS A5.4 / ASME SFA5.4 ER316L-16
|
|
|
|
JIS Z3221 D316L-16
|
|
|
|
Applications
|
|
|
|
Welding of extra low carbon 18% Cr - 12% Ni - 2% Mo ( 316L Stainless Steel )
|
|
|
|
Usage Specifications
|
|
|
S316L-16N is a lime-titania type of electrode. As the all-weld metal has austenite structure containing ferrite the crack resistibility is good. It has an excellent resistibility to inter crystalline corrosion and heat resistance is good.
|
|
|
|
|
|
|
Dry the electrodes at 350'C for 60 minutes before use.
|
|
|
|
Remove all dirt such as oil & dust from the material.
|
|
|
|
AC or DC +
|
|
|
|
|
|
Weaving width should be within two and a half times of the electrode diameter.
|
|
|
|
|
|
|
|
|
Typical Mechanical Composition of All-Weld Metal (%)
|
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Ni
|
Mo
|
|
0.02
|
0.75
|
1.10
|
0.032
|
0.015
|
18.5
|
11.9
|
2.4
|
|
|
|
|
Typical Mechanical Properties of All-Weld Metal
|
|
T.S N/mmSq
|
EL.(%)
|
|
557
|
45.2
|
|
|
|
|
Available Sizes & Recommended Currents ( Amps )
|
|
Code
|
Current
|
Pack Size
|
Carton Size
|
|
S316L26
|
45 ~ 85
|
2.5 Kg
|
10 Kg
|
|
S312L32
|
65 ~ 115
|
2.5 Kg
|
10 Kg
|
|
S312L40
|
85 ~ 150
|
2.5 Kg
|
10 Kg
|
|
|
|
|
|
|
|
|
