CARBIDE BURRS DOUBLE CUT

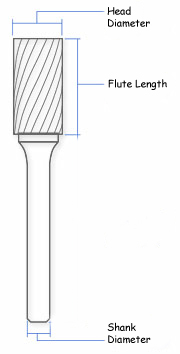

Cylindrical Shape

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSa bur

SA1

1/4"

5/8"

1/4"

SA2

5/16"

3/4"

1/4"

SA3

3/8"

3/4"

1/4"

SA4

7/16"

1"

1/4"

SA5

1/2"

1"

1/4"

SA6

5/8"

1"

1/4"

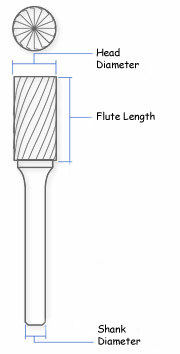

Cylindrical Shape with End Cut

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSb Bur

SB1

1/4"

5/8"

1/4"

SB2

5/16"

3/4"

1/4"

SB3

3/8"

3/4"

1/4"

SB4

7/16"

1"

1/4"

SB5

1/2"

1"

1/4"

SB6

5/8"

1"

1/4"

Cylindrical Shape with Radius

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSc Bur

SC1

1/4"

5/8"

1/4"

SC2

5/16"

3/4"

1/4"

SC3

3/8"

3/4"

1/4"

SC4

7/16"

1"

1/4"

SC5

1/2"

1"

1/4"

SC6

5/8"

1"

1/4"

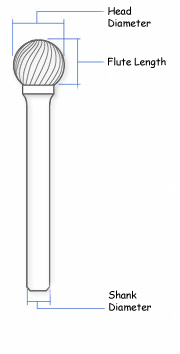

Ball Shape

Code

Head Diameter

Shank Diameter

Std Cut PicturedSd Bur

SD1

1/4"

1/4"

SD2

5/16"

1/4"

SD3

3/8"

1/4"

SD4

7/16"

1/4"

SD5

1/2"

1/4"

SD6

5/8"

1/4"

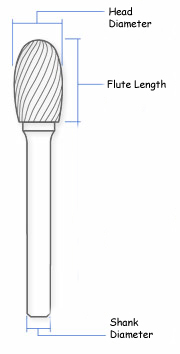

Oval Shape

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSe Bur

SE1

1/4"

3/8"

1/4"

SE2

5/16"

5/8"

1/4"

SE3

3/8"

5/8"

1/4"

SE5

1/2"

7/8"

1/4"

SE6

5/8"

1"

1/4"

SE7

3/4"

1"

1/4"

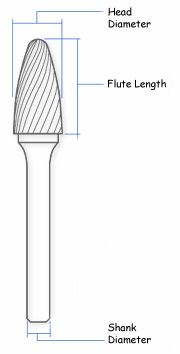

Round Nose Tree Shape

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSf Bur

SF1

1/4"

5/8"

1/4"

SF3

3/8"

3/4"

1/4"

SF4

7/16"

1"

1/4"

SF5

1/2"

1"

1/4"

SF6

5/8"

1"

1/4"

SF7

3/4"

1"

1/4"

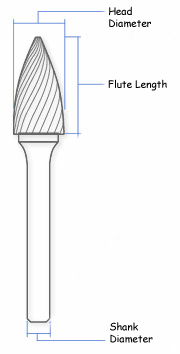

Pointed Tree Shape

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSg Bur

SG1

1/4"

5/8"

1/4"

SG2

5/16"

3/4"

1/4"

SG3

3/8"

3/4"

1/4"

SG5

1/2"

1"

1/4"

SG6

5/8"

1"

1/4"

SG7

3/4"

1"

1/4"

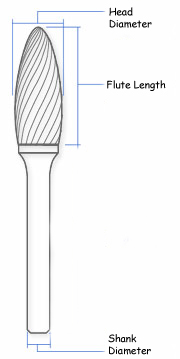

Flame Shape

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSh Bur

SH1

1/4"

5/8"

1/4"

SH2

5/16"

3/4"

1/4"

SH3

3/8"

1"

1/4"

SH5

1/2"

1~1/4"

1/4"

SH6

5/8"

1~7/16"

1/4"

SH7

3/4"

1~5/8"

1/4"

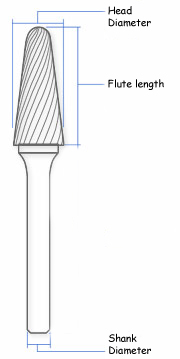

Tapered Cone Shape w / Radius

Code

Head Diameter

Flute Length

Shank Diameter

Std Cut PicturedSl Bur

SL1

1/4"

3/16"

1/4"

SL2

5/16"

7/8"

1/4"

SL3

3/8"

1~1/16"

1/4"

SL4

1/2"

1~1/8"

1/4"

SL5

5/8"

1~3/16"

1/4"

SL6

5/8"

1~5/16"

1/4"

SL7

3/4"

1~1/2"

1/4"

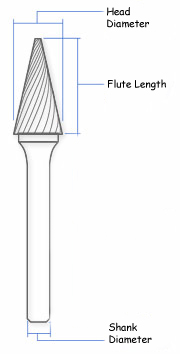

Cone Shape

Code

Head Diameter

Flute Length

Shank Diameter

Angle°

Std Cut PicturedSm Bur

SM1

1/4"

1/2"

1/4"

22°

SM2

1/4"

3/4"

1/4"

14°

SM3

1/4"

1"

1/4"

10°

SM4

3/8"

5/8"

1/4"

28°

SM5

1/2"

7/8"

1/4"

28°

SM6

5/8"

1"

1/4"

31°

40 Series 1/8" Shank

Code

Cut Diameter

Flute Length

Overall Length



SA43

1/8"

9/16"

1~1/2"

SA-43

SC42

1/8"

9/16"

1~1/2"

SC-42

SD41

3/32"

3/32"

1~1/2"

SD-41

SD42

1/8"

1/8"

1~1/2"

SD-42

51 & 53 Series 1/8" Shank

Code

Cut Diameter

Flute Length

Taper Angle



SA51

1/4"

1/2"

~

SA-51

SL53

3/16"

1/2"

14°

SL-53

Aluminium Cut Burrs

Code

Cut Diameter

Flute Length

Shank Diameter



SC3AL

3/8"

3/4"

1/4"

SC5AL

SE3AL

3/8"

5/8"

1/4"

SE3AL

SF3AL

3/8"

3/4"

1/4"

SF3AL

SA5AL

1/2"

1"

1/4"

Sa5AL
