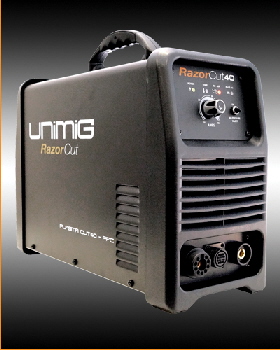

RAZORWELD RAZOR CUT 40 PLASMA CUTTER

The RAZORCUT40 is an inverter-based Plasma cutting machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality Plasma Cutter. The RAZORCUT40 produces a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc . The RAZORCUT40 is equipped with a high quality SureGrip SC80 Plasma torch with Euro connection,developed specifically to enhance and improve the cut quality of the RAZORCUT40 machine. Connection of the SC80Plasma torch provides effortless starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips. The HF start function allows stand off arc ignition. Added P.F.C (power factor correction) provides less primary amperage draw at start up, reduces feedback and interference into the power network and provides better compatibility for use of generator power supply. The RAZORCUT40 is an exceptional machine that is suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services. The RAZORCUT40 is packaged with a tough SureGrip SC80 Plasma torch, earth lead and air regulator. The RAZORCUT40 gives you the best of both worlds great portability, with the power to get the job done. Built to our specification and manufactured in compliance to AS/NZ60974-1.

KUPJRRW40

Technical Data



Power Supply / Phases (V-Ph)

240v - 1 +/- 15%

Duty Cycle @ 40’c

30% @ 40 Amps

Rated Power (KVA)

5.50

Output Current Range (A) Plasma

20 - 40

Rated Output Voltage (V)

96

Efficiency (%)

90

Insulation Class

H

Protection Class

IP21S

Air Flow Pressure (MPA)

0.5 (75 psi)

Air Flow Rate (l/min)

190

Cutting Thickness - Clean (mm)

16

Cutting Thickness - Severance (mm)

20

Dimensions (mm)

460 x 170 x 330

Weight (kg)

12.2

Warranty

2 years (Machine only)

Certification Approval

AS/NZ60974-1

Plasma Arc Starting

HF Touch

SC80

SC80 Plasma Torch Spares
