Redback Selection Guide

                    Model                                        Features                   Applications

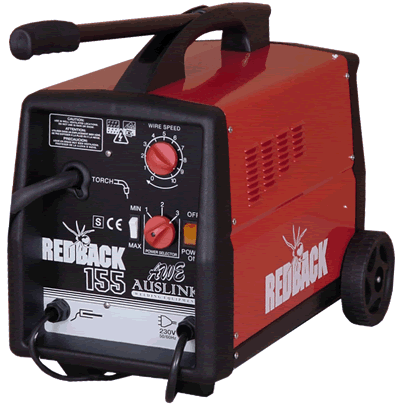

 R155 Mig Welder



R155
Duty Cycle
20% @ 130 Amps
Current Range

30 - 145 Amps
240 Volt Single Phase

  • 1 kg & 5 kg Spool size
  • Wire size .6 ~ .8 mm
  • 6 Voltage Settings
  • 15 Amp Plug
  • Reverse Polarity
  • Fan Cooled
  • Weight 27 kg
  • D.I.Y Jobs
  • Home Handy Man
  • Light Fabrication
  • Farm Workshop
  • Hobby Welding
  • Hire
  • 6 mm Material Thickness

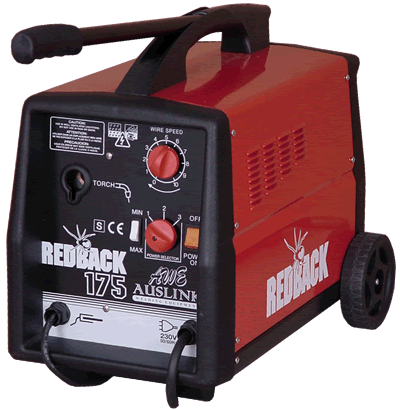

 R175 Mig Welder



R175
Duty Cycle
20% @ 140 Amps
Current Range

30 - 165 Amps
240 Volt Single Phase

  • 1 kg & 5 kg Spool size
  • Wire size .6 ~ .8 mm
  • 6 Voltage Settings
  • 15 Amp Plug
  • Reverse Polarity
  • Fan Cooled
  • Weight 33 kg
  • D.I.Y Jobs
  • Home Handy Man
  • Panel Shop
  • Light Fabrication
  • Farm workshop
  • Hire
  • 6 mm Material Thickness

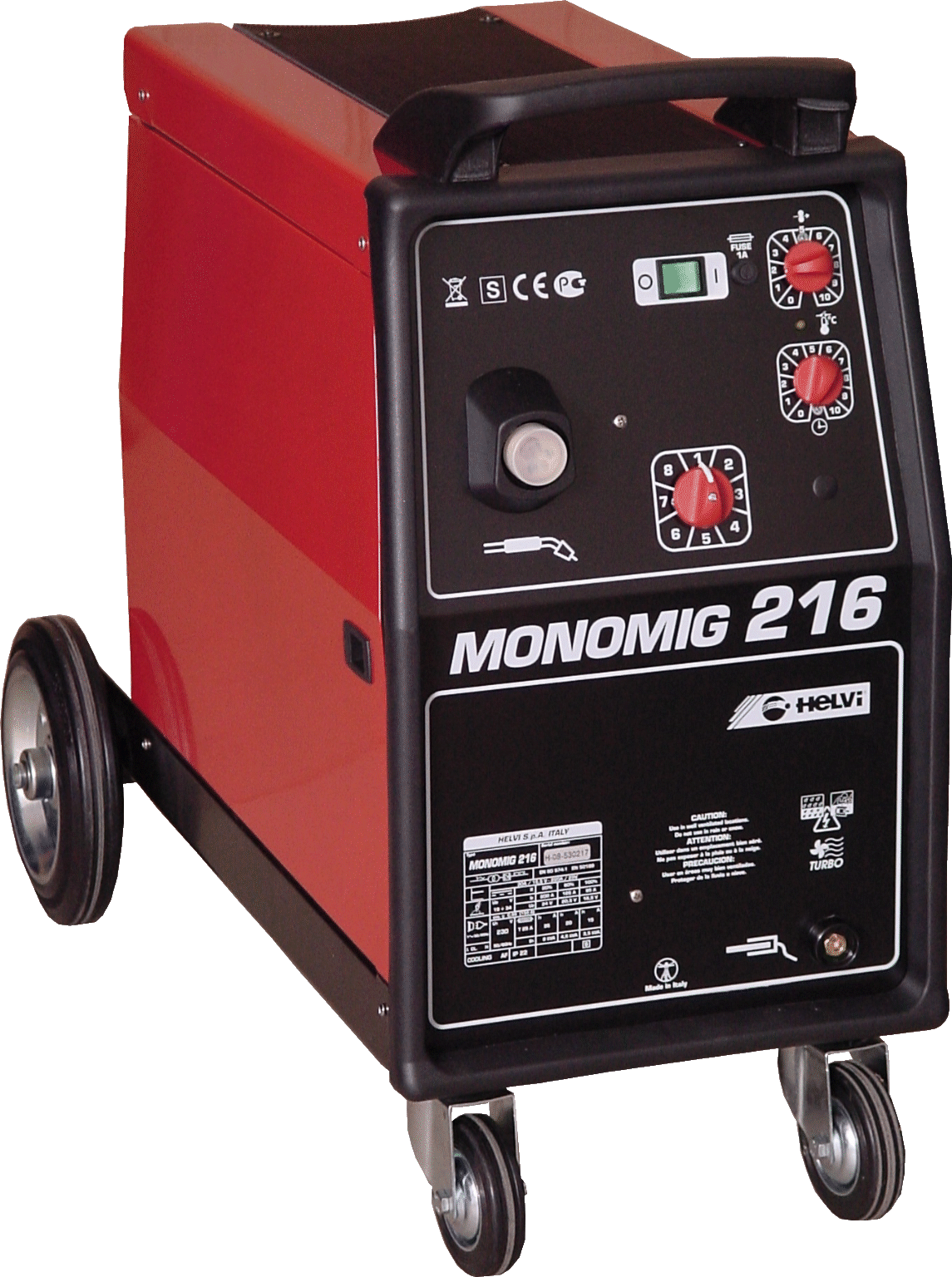

  M216 Mig Welder

M216
Duty Cycle
20% @ 200 Amps
Current Range

30 - 200 Amps
240 Volt Single Phase

  • 5 kg & 15 kg Spool size
  • Wire size .6 ~ 1 mm
  • 8 Voltage Settings
  • 15 Amp Plug
  • Spot Timer
  • Fan Cooled
  • Heavy Duty Drive System
  • MB15AK 3 Mtr Torch
  • Argon Regulator
  • Weight 58 kg
  • Home Handy Man
  • Light Fabrication
  • Farm workshop
  • Panel Shop
  • Repair Shop
  • Hire
  • 10 mm Material Thickness



   E245 Mig Welder



R245
Duty Cycle
35% @ 235 Amps
Current Range

30 - 240 Amps
415 Volt Three Phase

  • 5 kg & 15 kg Spool size
  • Wire size .6 ~ 1 mm
  • 7 Voltage Settings
  • Spot Timer
  • Fan Cooled
  • Heavy Duty Drive System
  • MB24KD 3 Mtr Torch
  • Argon Regulator
  • Weight 62.8 kg
  • Light Engineering
  • Light Fabrication
  • Farm workshop
  • Panel Shop
  • Repair Shop
  • Hire
  • 12 mm Material Thickness



  R250 Mig Welder



R250
Duty Cycle
35% @ 230 Amps
Current Range

30 - 240 Amps
240 Volt Single Phase

  • 5 kg & 15 kg Spool size
  • Wire size .6 ~ 1 mm
  • 7 Voltage Settings
  • Spot Timer
  • Fan Cooled
  • Heavy Duty Drive System
  • MB24KD 3 Mtr Torch
  • Argon Regulator
  • Weight 64 kg
  • Light Engineering
  • Light Fabrication
  • Farm workshop
  • Panel Shop
  • Repair Shop
  • Hire
  • 12 mm Material Thickness

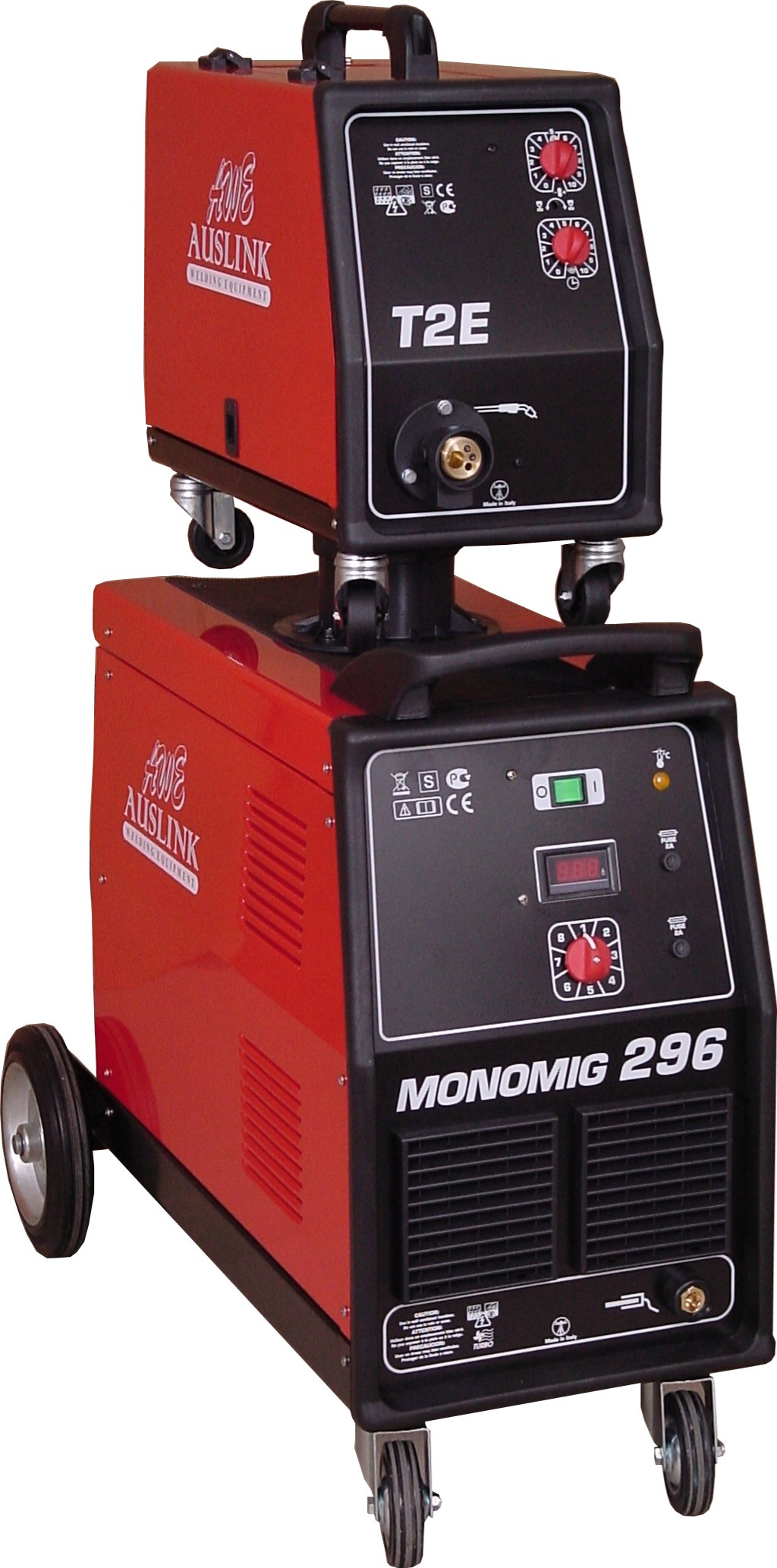

  M296T Mig Welder

DOWNLOAD BROCHURE



M296T
Duty Cycle
30% @ 250 Amps
Current Range

30 - 260 Amps
240 Volt Single Phase



  • 5 kg & 15 kg Spool size
  • Wire size .6 ~ 1 mm
  • 8 Voltage Settings
  • 10 Mtr Traveller Cables
  • Spot Timer
  • Fan Cooled
  • Heavy Duty Drive System
  • MB25AK 3 Mtr Torch
  • Argon Regulator
  • Weight 99 kg
  • Light Engineering
  • Light Fabrication
  • Farm workshop
  • Panel Shop
  • Repair Shop
  • Hire
  • 12 mm Material Thickness

Product specifications subject to change without notice
