FIAC SCREW COMPRESSORS

 NEW SILVER - SILENT ENCAPSULATED ROTARY SCREW COMPRESSORS  ( Made in ITALY )

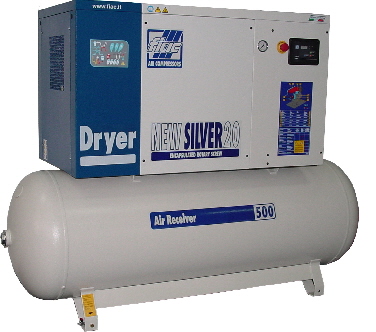

NSD20500

The New Silver D series of rotary screw compressors have been designed to satisfy the demands of compressed air users of various requirements, Ranging from 5.5 Hp to 20 Hp. Simple, economical and technologically advanced New Silver D is the ideal solution for customers who need a complete air station.

KEY FEATURES

  • High efficiency and reliability.
  • Effective cooling system.
  • FIAC Easy Control System.
  • Easy Data reading.
  • IP 54, Insulation Class
  • Continuous Duty Cycle Electric Motor.
  • Optimal low noise level, sound proof panels.
  • Long Life & High performance over time.
  • Optimal & Efficient Air Drying.
  • Solid Chassis, with drain tap.

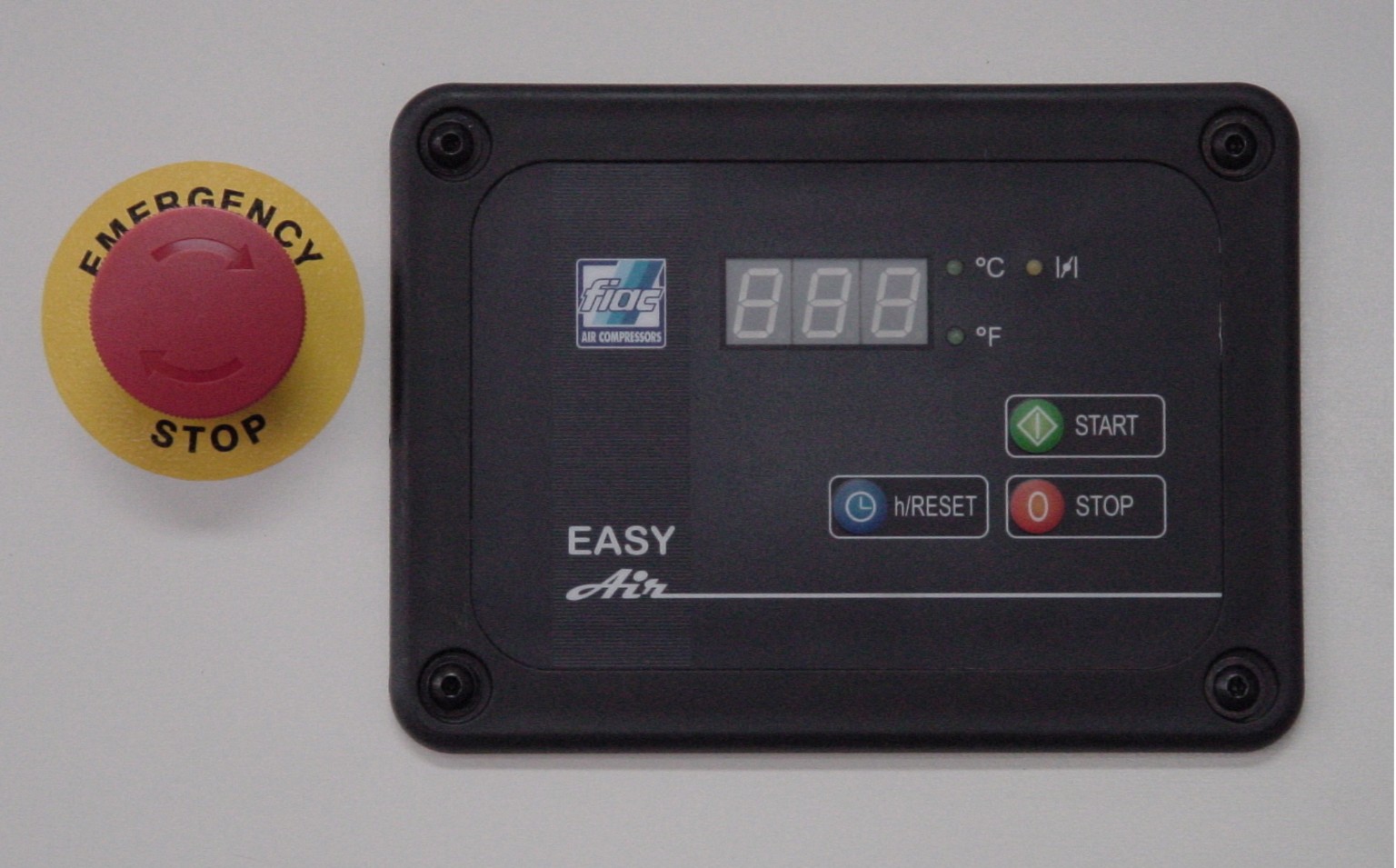

Easy Control

The Easy Control manages & monitors  the Air Pressure, Oil Temperature, Hour Meter for compression and idle running times, protection alarms and maintenance schedules.

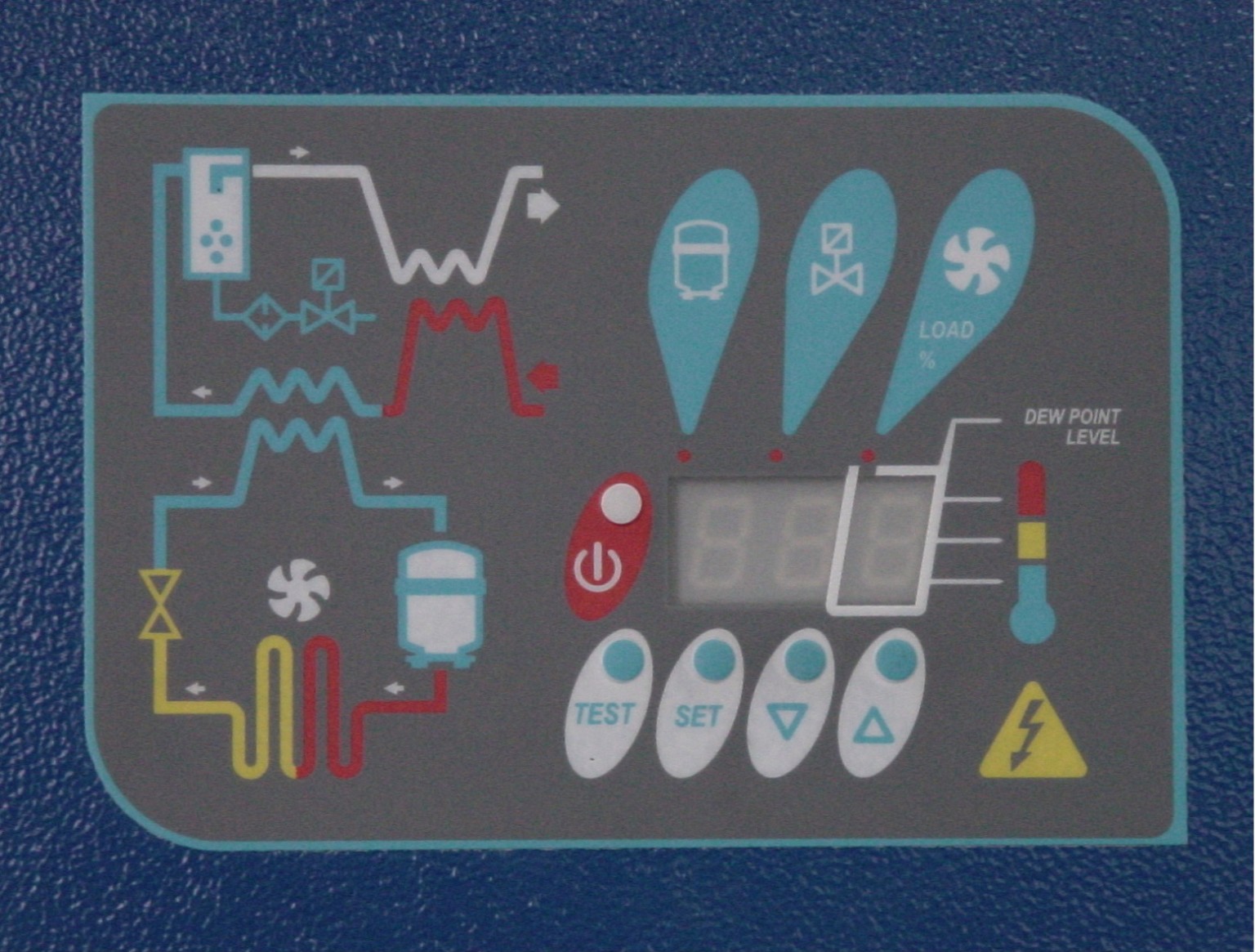

Air Dryer

The Air Dryer Control System continuously monitors the dew point. Allowing the adjustment of  interval and time of the condensation discharge.

Model

Input Power

 Motor  Size    Kw / Hp

Tank Capacity

Air Delivery L/m / Cfm

Maximum Operating Pressure

Weight

dBA

NS7.5300

415 Volt 50Hz

       5.5 Kw       7.5 Hp

300 Ltr

  820.0 L/m    28.9 Cfm

     10 Bar    145 Psi

240 kg

66

NSD10300

415 Volt 50Hz

      7.5 Kw     10.0 Hp

300 Ltr

 860.0 L/m    30.2 Cfm

     10 Bar    145 Psi

257 kg

67

NSD15500

415 Volt 50Hz

    11.0 Kw     15.0 Hp

500 Ltr

 1430.0 L/m   50.4 Cfm

    10 Bar     145 Psi

365 kg

67

NSD20500

415 Volt 50Hz

      15.0 Kw       20.0 Hp

500 Ltr

1900.0 L/m   67.0 Cfm

    10 Bar     145 Psi

438 kg

67
